Question 1

Where can I buy Voyten Type RL/VRL breaker parts?

Accepted Answer

Voyten Electric & Electronics, Inc. is the New Surplus authorized source for Voyten Type RL/VRL breaker inventory worldwide. Voyten purchased all remaining RL and LA breaker inventory directly from the Wendell, NC manufacturing facility. New-surplus breakers, Static Trip III units, and every renewal part are tested, in stock, and ready to ship. Call 1-800-458-4001 or request a quote at voytenmanuals.com/contact.

Question 2

What is a Voyten Type RL/VRL breaker?

Accepted Answer

The Voyten Type RL/VRL is a low voltage power circuit breaker (LVPCB) in drawout construction, rated from 800A to 5000A. It uses the Static Trip III electronic trip unit for LSIG (Long-time, Short-time, Instantaneous, Ground fault) overcurrent protection. Variants include the RL (standard), RLE (economical — 800/2000/4000A frames), RLI (integrally fused — 800A), and RLF (fully rated). The RL product line also includes the companion Type LA air circuit breaker.

Question 3

What is the Static Trip III trip unit?

Accepted Answer

The Static Trip III is an electronic trip unit providing adjustable LSIG overcurrent protection for all RL series breakers. L = Long-time delay (adjustable pickup and time band), S = Short-time delay (I²t or flat response), I = Instantaneous (fixed or adjustable pickup), G = Ground fault (adjustable pickup and delay). Voyten stocks new-surplus and reconditioned Static Trip III units with full testing and calibration.

Question 4

What RL/VRL breaker frame sizes does Voyten stock?

Accepted Answer

Voyten stocks Type RL/VRL breakers and parts for all frame sizes: 800A, 1200A, 1600A, 2000A, 2500A, 3000A, 3200A, 4000A, and 5000A. The inventory includes 23 accessory categories covering every component from anti-pump relays and arc chutes to motor operators and undervoltage trip devices.

Question 5

Are Type RL/VRL breakers still manufactured?

Accepted Answer

No. The RL product line was discontinued and the Wendell, NC facility closed. Voyten Electric purchased all remaining inventory, making them the New Surplus authorized source for Voyten Type RL/VRL breakers, LA breakers, Static Trip III units, and all renewal parts. Free technical documentation including instruction manuals (SGIM-3068), renewal parts catalogs (SG-3068), and wiring diagrams (SGIM-3068D) is available at voytenmanuals.com/products/rl-breakers.

Question 6

My Type RL/VRL breaker failed — who do I call for an emergency replacement?

Accepted Answer

Call Voyten Electric at 1-800-458-4001 for 24/7 emergency support. As the New Surplus authorized source for Voyten Type RL/VRL inventory, Voyten identifies your breaker from its catalog or edge number, pulls an exact-match new-surplus or reconditioned RL/RLE/RLI/RLF breaker, Static Trip III unit, or renewal part from stock, tests it, and expedites shipment to minimize downtime in plants and critical facilities.

Question 7

How do I extend the life of aging RL switchgear instead of replacing it?

Accepted Answer

Because Voyten holds the complete Type RL/VRL inventory, aging RL switchgear can stay in service with genuine new-surplus and reconditioned RL breakers, Static Trip III trip units, and renewal parts — no need to replace the switchgear lineup. Voyten supplies exact-match components across all frames (800–5000A) so existing cells, bus, and wiring stay intact. Call 1-800-458-4001.

Question 8

How do I identify my Type RL/VRL breaker to order a replacement?

Accepted Answer

Provide the catalog number or the edge number stamped on the breaker frame, plus the frame size (800–5000A) and trip-unit model. Voyten cross-references these to the exact replacement breaker and parts. Call 1-800-458-4001 or request a quote at voytenmanuals.com/contact.

Voyten Type RL/VRL BreakersLow Voltage Power Circuit Breakers — 800A to 5000A

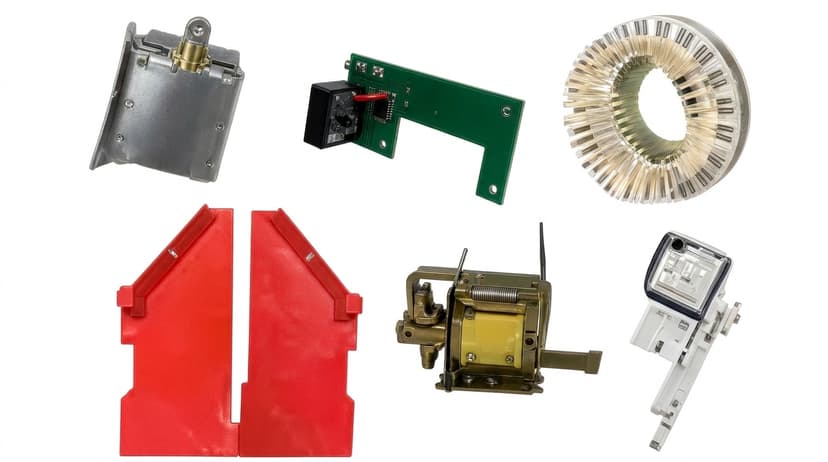

RL Accessories & Renewal Parts

Complete Parts Availability

RL Technical Documentation

Microprocessor Based Tripping System Static Trip III

Static Trip II Overcurrent Trip Device

Static Trip III

Static Trip III Information and Instruction Guide

Siemens Type RL Renewal Parts Catalog

Siemens Type RL Wiring Diagrams & Control Power Manual

Siemens Static Trip III Information & Instruction Guide (SGIM-3118C)

Siemens Static Trip III Microprocessor Tripping System Bulletin (SG-3169)

Siemens Static Trip III Retrofit Kit Instructions

Siemens Type RL Installation & Maintenance Manual (SGIM-3068)

Siemens Type RL Installation & Maintenance Manual (SGIM-3068E)

Static Trip III Electronic Trip Unit

Need an RL Part?
